Product introduction

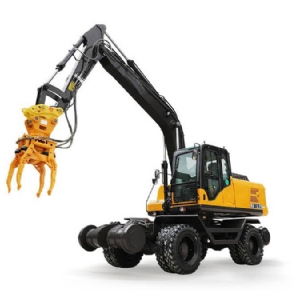

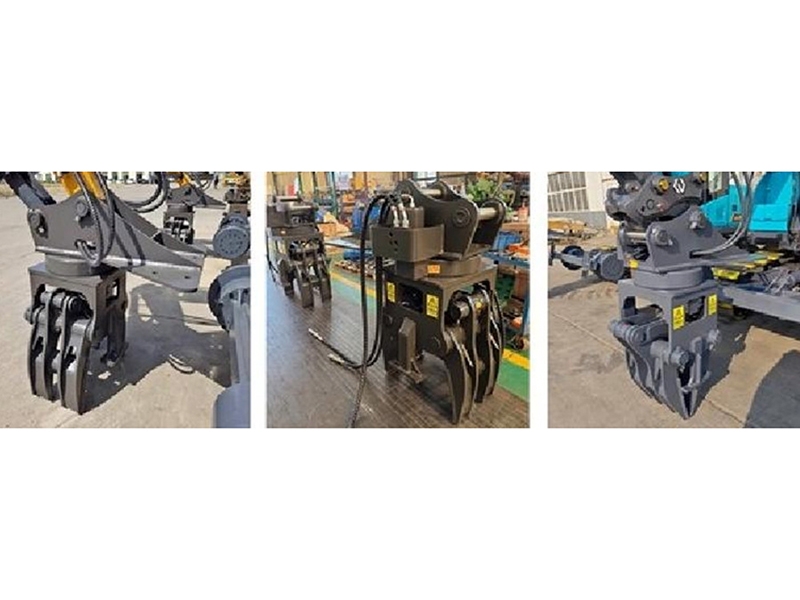

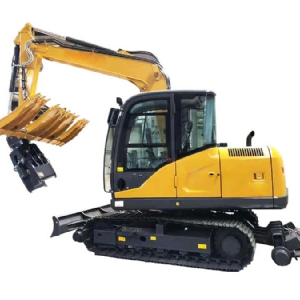

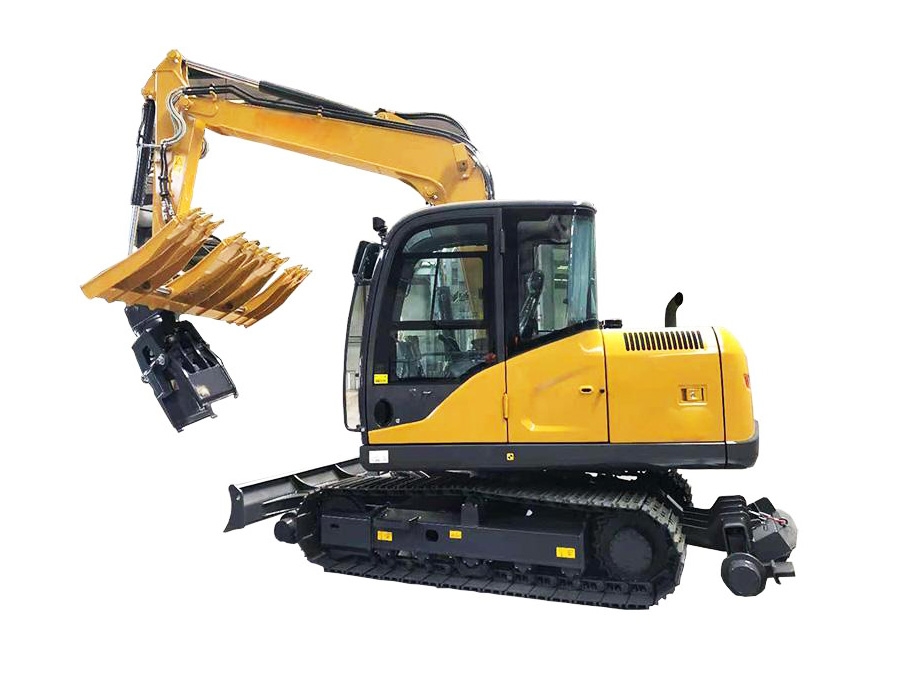

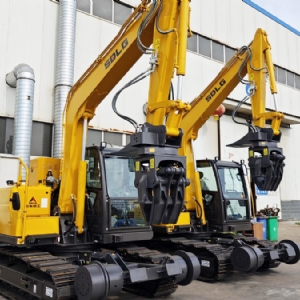

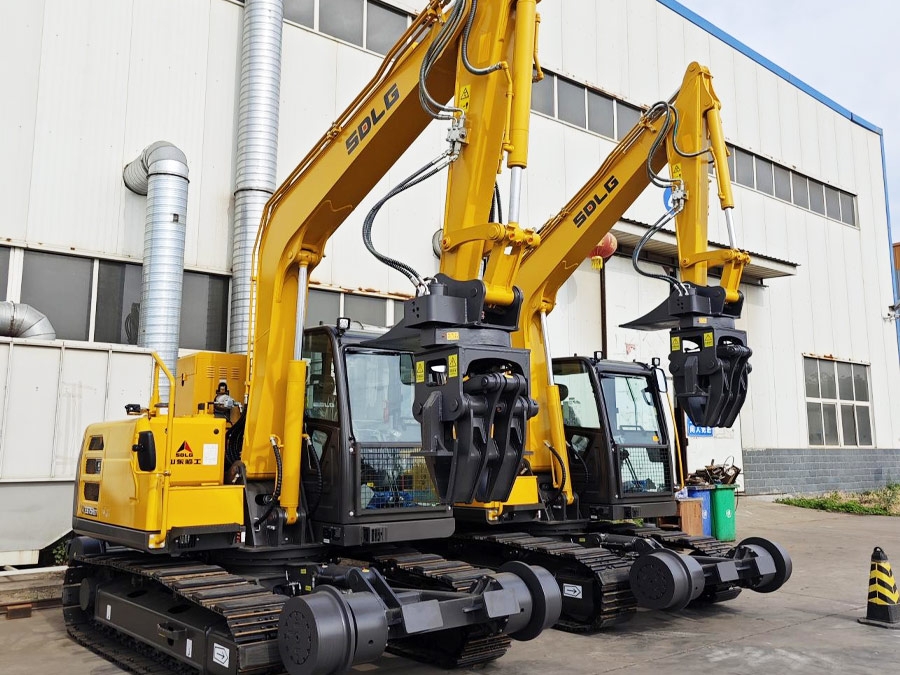

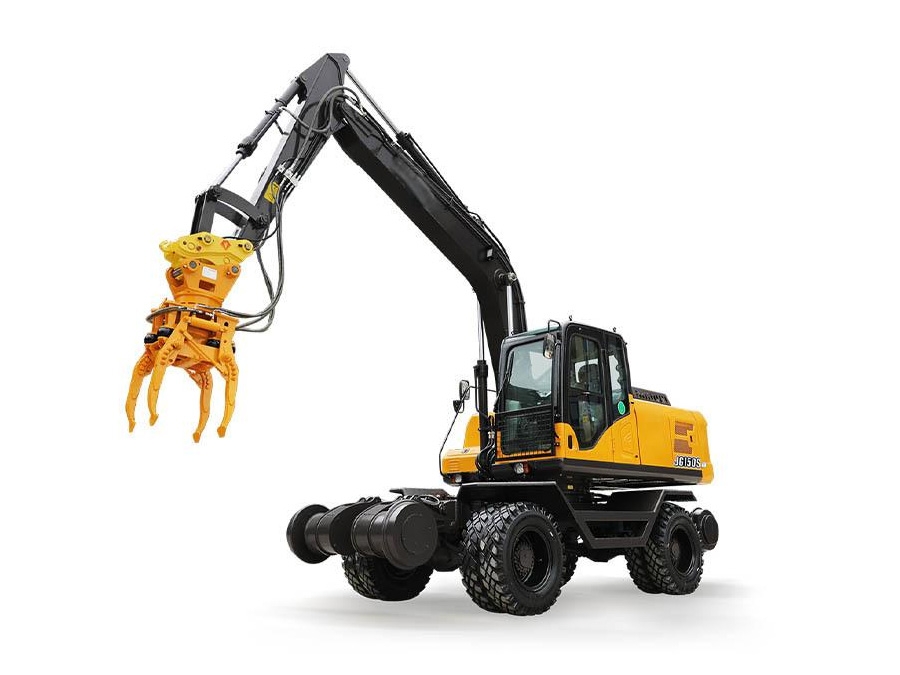

Railway construction equipment ---- public and railway dual-purpose excavator railway wheel train lifting and driving device, tie fixture. The excavator sleeper fixture is one of the railway maintenance equipment working devices newly designed and produced by our company. It is a front-end working device that can be installed on the excavator through the quick-change connector. Suitable for 6-13 tons excavator. At the same time, our factory modified the dual-purpose excavator, that is, the bottom device of the excavator walking on the railway track, which is more convenient in railway maintenance.
The equipment is suitable for the domestic 1435mm gauge, the walking speed is about 10-20KM/h, and the carrying weight is less than 15T. The utility model can drive the railway wheel system of lifting through the hydraulic system in the existing crawler excavator, so that the ordinary crawler excavator can run along the railway. It can be widely used in railway tie maintenance and replacement, line repair, and cable ditch construction on both sides of the railway.
Argument
Technical parameters of railway | ||
Applicable gauge | millimeter（mm） | 1435（customizable） |
Number of driving wheels | a（Units） | 2 |
Drive wheel operation mode |
| Main engine joystick control |
Railway track travel mode |
| Drive wheel travel |
The way of railway operation |
| The drive wheel is convertible to the free wheel mode |
Driving power form |
| One-piece motor |
Railway track speed | km/h | 10-20 |
Railway operating speed (free wheel) | km/h | 2.4-4.4 |
Railway braking distance | millimeter（mm） | ≤10000 |
Dead weight of vehicle | KG | ≥10000 |
outfitting |

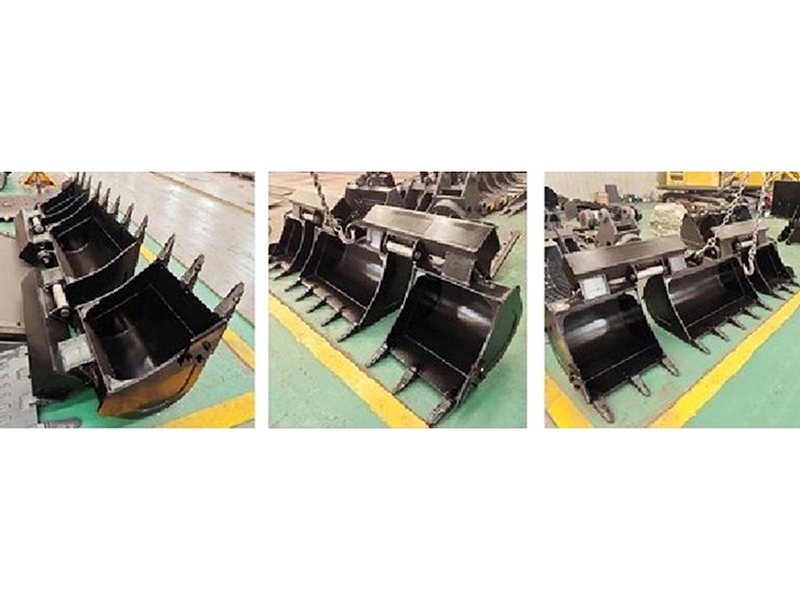

| Standard digging bucket, rotary scraper rotary slag cleaning bucket, rotary inclined screening bucket, ballast rotary screw loose machine, rotary inclined slope protection bucket, crushing hammer, road core scraping plate, high frequency screening bucket, etc |
